Beschreibung

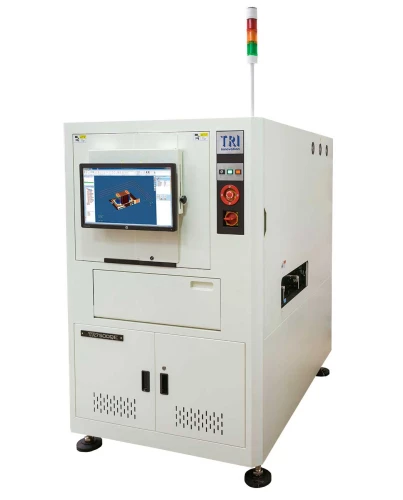

The TR7500QE AOI offers high performance 3D solder and assembly inspection by combining the next generation multi-angle 2D and 3D technologies based on 4-way adaptive digital fringe pattern projection and 4 side view cameras. Latest inspection software ensures quick CAD-based programming and features fully customizable templates for zero escapes on any PCBA.
Technische Daten
| Optical System | |
|---|---|
| Imaging Method | Stop-and-Go Imaging |
| Top Camera | 12 Mpix |
| Angle Camera | 6.5 Mpix |
| Imaging Resolution | 10 µm, 15 µm (factory setting) |
| Lighting | Multi-phase true color LED, Coaxial lighting |
| 3D Technology | Quad Digital Fringe Projectors |
| Max. 3D Range | 12 Mpix@ 10 µm: 0-10 mm 12 Mpix@ 15 µm: 0-20 mm |
| Inspection Performance | |
|---|---|
| Imaging Speed |
12 Mpix@ 10 µm: 13.5 cm²/sec Note: Depending on component distribution |
| Motion Table & Control | |
|---|---|
| X-Axis Control | Ballscrew + AC-servo controller (Linear motor optional) |
| Y-Axis Control | Dual driven ballscrew + AC-servo controller |
| Z-Axis Control | Ballscrew + AC-servo controller |
| X-Y Axis Resolution | 1 µm |
| Board Handling | |
|---|---|
| Max PCB Size | TR7500QE: 510 x 460 mm TR7500L QE: 660 x 610 mm TR7500QE DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane |
| PCB Thickness | 0.6-5 mm |
| Max PCB Weight | 3 kg |
| Top Clearance | 50 mm |
| Bottom Clearance | 40 mm |
| Edge Clearance | 3 mm [5 mm optional] |
| Conveyor |
Inline |
| Inspection Functions | |
|---|---|
| Component | Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective Upside Down Extra Component Foreign Material Lifted Component |
| Solder | Solder Fillet Height Solder Volume % Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/Contamination |
Anlagenmerkmale
- Multi-angle 2D + 3D Coverage
- 4-way Digital Fringe Projectors
- 4 Side View Cameras
- Up to 20 mm 3D Height Range
- High Speed CoaXPress Imaging
- Optional 3D Laser Module
